The USB-C VGA Multiport Adapter connects a Mac that has a Thunderbolt 3 (USB-C) or USB-C port to a display that uses a VGA cable. It also connects your Mac to USB-A devices and includes a USB-C port for charging your Mac notebook. All three ports can be used simultaneously.

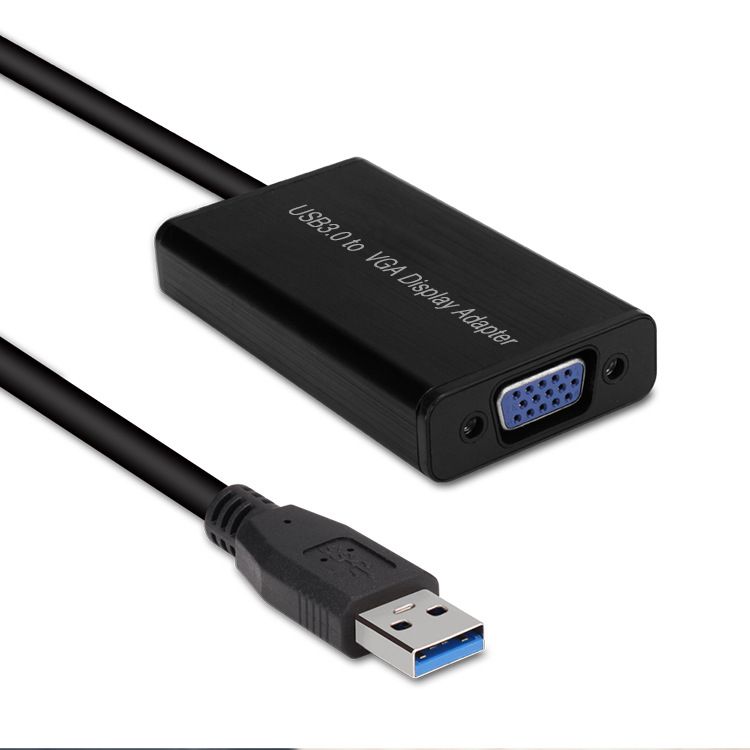

Amazon.com: USB to VGA Adapter Compatible with Mac OS Windows XP/Vista/10/8/7, USB 3.0 to VGA Female 1080P Monitor Display Video Adapter/Converter.(Female 20 in) (Renewed): Electronics. The Apple USB-C VGA Multiport Adapter lets you mirror your Mac display to a VGA-enabled projector, TV or display in up to 1080p HD. Thankfully there are cheaper third-party USB-C to VGA adapters.
Use the VGA port of this adapter with a display, TV, or projector that connects using a VGA cable. It supports display resolutions up to 1920 x 1200.
Data transfer and charging other devices
Use the USB-A port of this adapter with flash drives, cameras, and other devices that connect to USB-A for data transfer or charging. It supports data-transfer speeds up to 5Gbps (USB 3.1 Gen 1).
For example, you can connect the Apple Lightning to USB Cable to this port to sync and charge your iPhone, iPad, or iPod.
Charging your Mac
Vga To Usb Adaptor For Mac
Use the USB-C port of this adapter for charging your Mac, not for data transfer or video. For example, you can connect one end of the Apple Thunderbolt 3 (USB-C) Cable or Apple USB-C Charge Cable to the USB-C port of this adapter, and connect the other end to an Apple USB-C Power Adapter.
This port delivers a maximum of 60W power, suitable for MacBook models and 13-inch MacBook Pro models. For the best charging performance on 15-inch and 16-inch MacBook Pro models, connect the power supply directly to your Mac, not through the adapter.
This adapter draws power from your Mac even when your Mac is asleep. To avoid draining the battery of your Mac notebook, unplug the adapter when your Mac is not connected to AC power.
- These devices aren't compatible with this adapter:
- G-Technology G-DRIVE mobile USB 3.0 Hard Drive (Apple part number HF4F2VC/A)
- Apple USB SuperDrive model manufactured before Fall 2010
The adapters and cables in this article work with these Mac computers and iPad Pro devices:
- Mac models that have Thunderbolt 3 ports. These ports support both Thunderbolt 3 and USB-C connections.
- Mac models that have a USB-C port. This port supports USB-C connections.
- iPad Pro models that have a USB-C port. This port supports USB-C connections.
To find the right cable or adapter for your Mac or iPad Pro, use the information below to identify the connector on the end of the cable coming from your display, hard drive, camera, hub, or other device. Check the end meant to plug into your Mac or iPad Pro.
If you're using an Apple Thunderbolt 3 cable or other Thunderbolt 3 cable with your display or other device, it will connect to your Mac without an adapter.
The Apple Pro Display XDR and LG UltraFine 5K Display use Thunderbolt 3.
If you're using a mophie USB-C Cable with USB-C Connector or other USB-C cable with your device, it will connect to your Mac or iPad Pro without an adapter.
The LG UltraFine 4K Display uses USB-C.
If you're using a USB-A cable with your device, use the Apple USB-C to USB Adapter, the Apple USB-C Digital AV Multiport Adapter, the Apple USB-C VGA Multiport Adapter, or another USB-C to USB-A adapter to connect your device to your Mac or iPad Pro.
To charge an iPhone, iPad, or iPod touch from a Thunderbolt 3 or USB-C port without one of these adapters, you can use the Apple USB-C to Lightning Cable instead.
If you're using an Ethernet cable with your device, use a third-party USB-C to Ethernet adapter, such as the Belkin USB-C to Gigabit Ethernet Adapter.
Thunderbolt or Thunderbolt 2
If you're using a Thunderbolt or Thunderbolt 2 cable with a Thunderbolt display or other device, use the Apple Thunderbolt 3 to Thunderbolt 2 Adapter.
This is the correct adapter for the Apple Thunderbolt Display.
Thunderbolt and Thunderbolt 2 are not the same as Mini DisplayPort . They have the same shape, but use different symbols on the cable and port.
Mac Usb C To Vga
If you're using a Mini DisplayPort cable with a Mini DisplayPort display, use a third-party USB-C to Mini DisplayPort adapter. Check with its manufacturer for compatibility with your Mac and display model.
This is the correct solution for the Apple LED Cinema Display.
Mini DisplayPort is not the same as Thunderbolt or Thunderbolt 2 . They have the same shape, but use different symbols on the cable and port.
Vga Adapter For Macbook Air
If you're using a DisplayPort cable with your display, use a third-party USB-C to DisplayPort adapter or cable, such as the Moshi USB-C to DisplayPort Cable.
If you're using an HDMI cable with your display, use the Apple USB-C Digital AV Multiport Adapter or a third-party USB-C to HDMI adapter or cable.

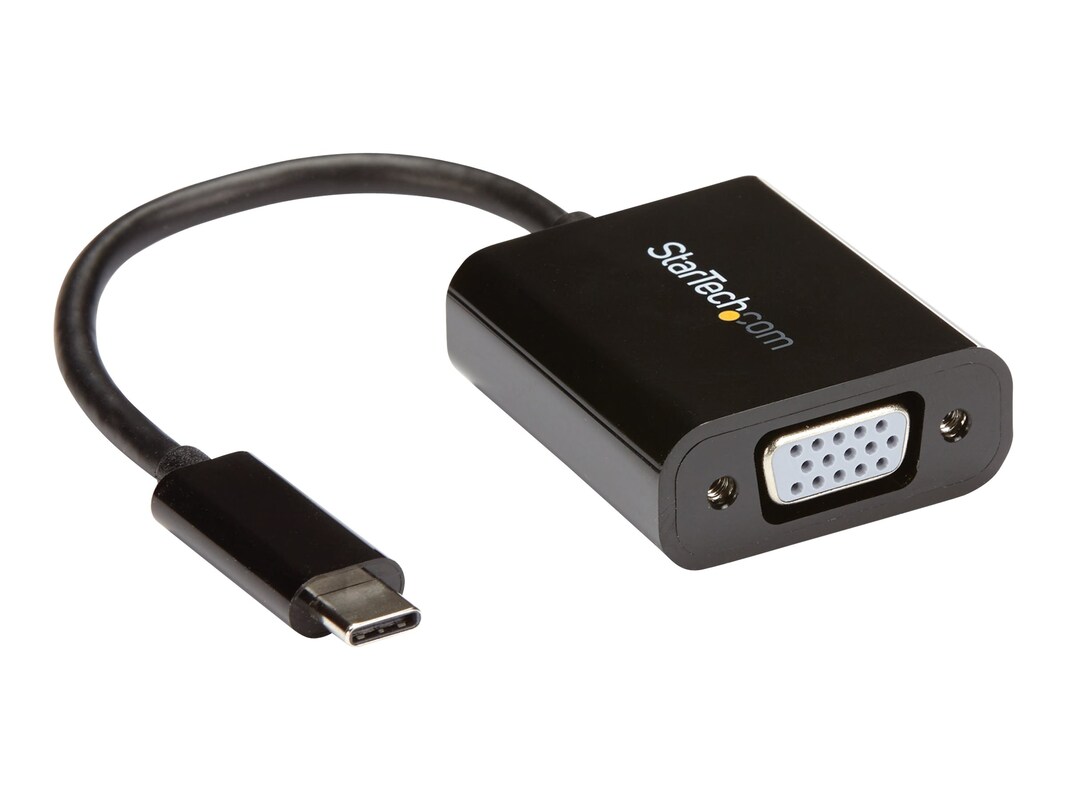

If you're using a VGA cable with your display, use the Apple USB-C VGA Multiport Adapter. Or use a third-party USB-C to VGA adapter, such as the Belkin USB-C to VGA Adapter.
If you're using a DVI cable with your display, use a third-party USB-C to DVI adapter or cable. Check with its manufacturer for compatibility with your Mac and display model.
Apple Vga Adapter For Macbook
- You can use your USB-C Power Adapter and charge cable with any Thunderbolt 3 or USB-C port on your Mac or iPad Pro.
- If you have an Apple TV connected to your TV, projector, or other display, you can use AirPlay to wirelessly stream video to that display, or extend the desktop of your primary display.
- Learn about using external monitors with your Mac.
- Learn more about using the USB-C port on your iPad Pro.
